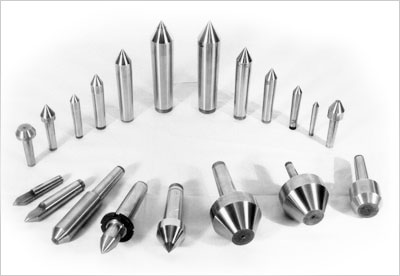

Dead Centers


Runout Wlthln 0.010mm TIR Runout Wlthln 0.010mm TIR

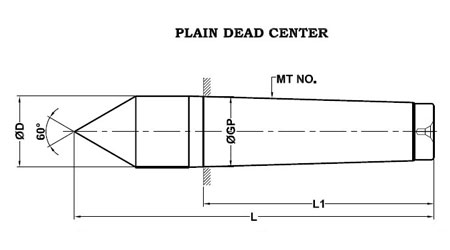

Mt No. L1 L øD øGP
Mt-1 53.5 80 12.2 12.065
Mt-2 64 100 18 17.78
Mt-3 81 125 24.1 23.825
Mt-4 102.5 160 31.6 31.267
Mt-5 129.5 200 44.7 44.399
Mt-6 182 270 63.8 63.348

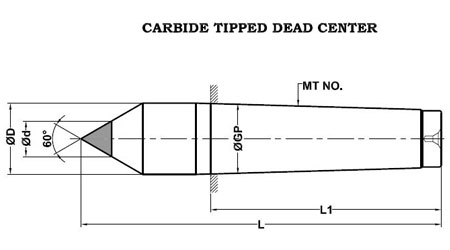

MT No. L1 L øD ød øGP
MT-1 53.5 80 12.2 7 12.065
MT-2 64 100 18 7 17.78
MT-3 81 125 24.1 11 23.825
MT-4 102.5 160 31.6 14 31.267
MT-5 129.5 200 44.7 18 44.399
MT-6 182 270 63.8 18 63.348

Runout Wlthln 0.010mm TIR Runout Wlthln 0.010mm TIR

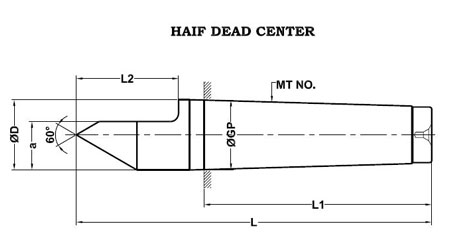

MT No. L1 L øD øa øL2 øGP
MT-1 53.5 80 12.2 7.6 23 12.065
MT-2 64 100 18 11 31 17.78
MT-3 81 125 24.1 15.05 39 23.825
MT-4 102.5 160 31.6 20.8 51 31.267
MT-5 129.5 200 44.7 29.35 64 44.399
MT-6 182 270 63.8 41.10 80 63.348

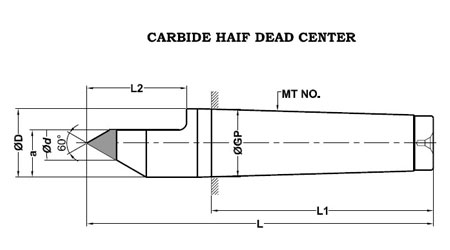

MT No. L1 L øD ød øa øL2 øGP
MT-1 53.5 80 12.2 7 7.6 23 12.065
MT-2 64 100 18 7 11 31 17.78
MT-3 81 125 24.1 11 15.05 39 23.825
MT-4 02.5 160 31.6 14 20.8 51 31.267
MT-5 29.5 200 44.7 18 29.35 64 44.399
MT-6 182 270 63.8 18 41.10 80 63.348

Runout Wlthln 0.010mm TIR Runout Wlthln 0.010mm TIR

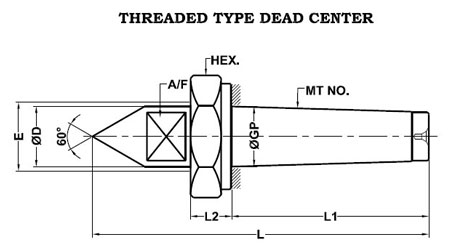

MT No. L1 L2 L øD E A/F HEX øGP
MT-1 53.5 12 90 12.2 M-16x1.5 10 24 12.065
MT-2 64 15.5 112 18 M-22x1.5 14 32 17.78
MT-3 81 17.5 138 24.1 M-27x1.5 19 41 23.825
MT-4 102.5 21 175 31.6 M-36x1.5 27 55 31.267
MT-5 129.5 23 217 44.7 M-48x1.5 36 75 44.399
MT-6 182 25.5 290 63.8 M-68x1.5 55 100 63.348

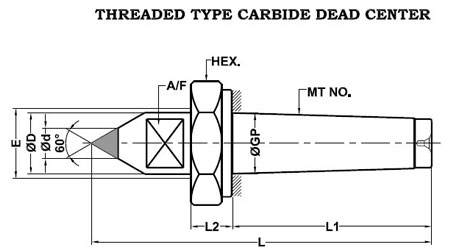

MT.No. L1 L2 L øD ød E A/F HEX øGP
MT-1 53.5 12 90 12.2 7 M-16x1.5 10 24 12.065
MT-2 64 15.5 112 18 7 M-22x1.5 14 32 17.78
MT-3 81 17.5 138 24.1 11 M-27x1.5 19 41 23.825
MT-4 102.5 21 175 31.6 14 M-36x1.5 27 55 31.267
MT-5 129.5 23 217 44.7 18 M-48x1.5 36 75 44.399
MT-6 182 25.5 290 63.8 18 M-68x1.5 55 100 63.348
Runout Wlthln 0.010mm TIR

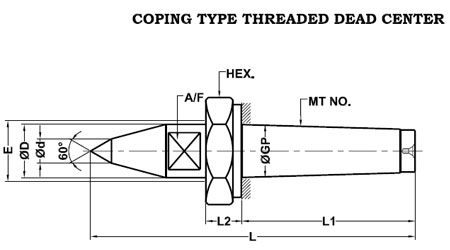

MT No. L1 L2 L øD ød E A/F HEX øGP
MT-2 64 15.5 118 18 10 M-22x1.5 14 32 17.78
MT-3 81 17.5 148 24.1 10 M-27x1.5 19 41 23.825
MT-4 102.5 21 186.5 31.6 14 M-36x1.5 27 55 31.267
MT-5 129.5 23 242 44.7 16 M-48x1.5 36 75 44.399
MT-6 182 25.5 330 63.8 20 M-68x1.5 55 100 63.348
