Centre to Centre Nut Operated Expanding Mandrel Type: ABKC


Application: Concentricity and true running inspection, turning, grinding Holding between centres.

Special Features: Hand operated clamping, wide clamping range. Concentricity 0.007mm

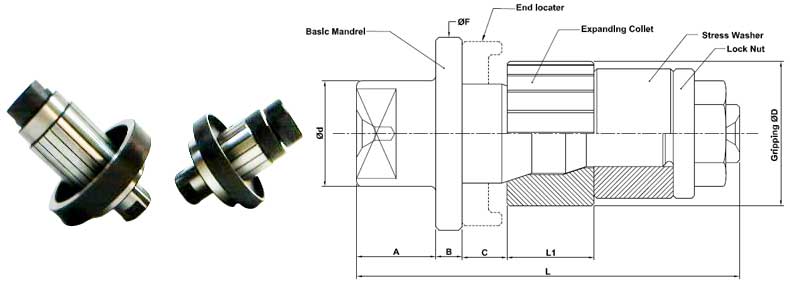

The thread opreated between centres expanding mandrel is generally used mounted between 60 centres, and can be drivan from drive flats with a carrier or drive plate. It is possible to attach a simple component end locator, if required, at diameter L. These mandrels are generally used for small batch grinding oprerations. There is a ground diameter to adapt this mandrel to face plate mounted, if required, by use of an adaptor plate. These mandrels are hand operated by use of conventional spanners. These mandrels are often used for inspection purposes.

Gripping dia. D. Sleeves are ground in the expanded position to provide loading clearance for component.

We also design, develop & manufacture mandrels as per customer requirements and drawing.

Model Gripping D Range L1 L A B C d F
Min Max
ABKC6C 76.2 89 57 155 35 13 13.3 50 71
ABKC5C 63.5 76.2 51 145 35 13 13 40 58
ABKC4C 41 63.5 43 120 27 13 10 30 50
ABKC18C 28.5 41 38 107 27 11 10.2 30 40
ABKC1C 22 28.5 32 99 27 11 10.5 30 40
ABKC2C 16 22 27 83 20 11 9 20 26
