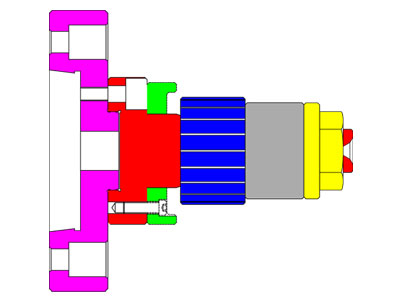

Flange Mounted Manual Operated Expanding Mandrel Type: ABKF


Application:
Concentricity and true running inspection, turning, grinding Holding between centres.

Special Features: Hand operated clamping, wide clamping range. Concentricity 0.007mm

The faceplate thread opreated expanding mandrel can be used on any machine with no drawbar facility, for general turning and grinding operations. Adaptor plates can be made to suit the machine mounting if necessary. Component end locators, solid type or compensating (for out-of-square locating faces)can be supplid or manufactured by customer. The natural pull-back action of the sleeve ensures the component is hard against the location face.

Gripping dia. D. Sleeves are ground in the expanded position to provide loding clearance for component.

We also design, develop & manufacture mandrels as per customer requirements and drawing.

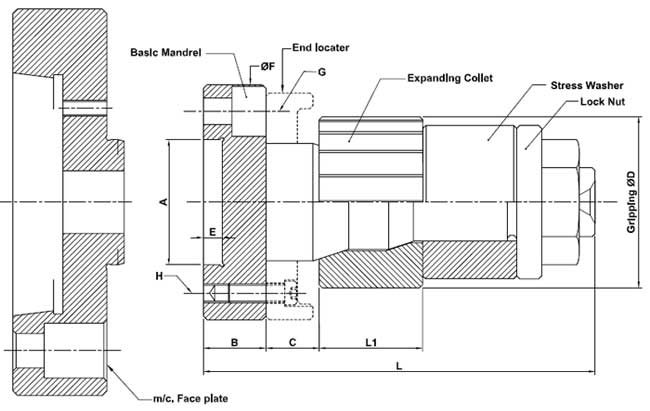

Model D Range L1 L A B C E F G H
Min Max
ABKF6C 76.2 89 57 144 60 25 25 6 120 94xM-10 94xM-8
ABKF5C 63.5 76.2 51 134 60 25 25 6 120 94xM-10 94xM-8
ABKF4C 41 63.5 43 105 40 20 15 6 75 58xM-8 58xM-6
ABKF18C 28.5 41 38 94 40 20 15.2 6 75 58xM-8 58xM-6
ABKF1C 22 28.5 32 86 40 20 15.5 6 75 58xM-8 58xM-6
ABKF2C 16 22 27 79 40 20 15 6 75 58xM-8 58xM-4
