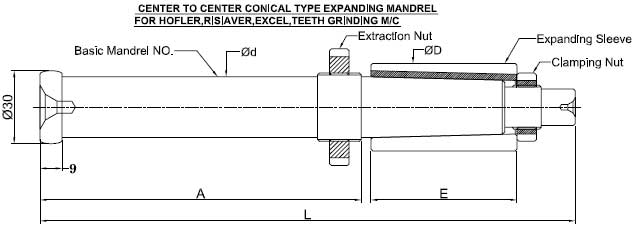

Appltcation: Concentricity and true running inspection, turning,teeth
grinding. Holding between centres.
Special Features: Hand operated clamping, wide clamping range
concentricity 0.005mm
| Mandrel No. |
Range D |
L |
E |
d |
A |
| APBL-0 |
10-14 |
134 |
30 |
25 |
78 |
| APBL-1 |
15-20 |
220 |
30 |
25 |
158 |
| APBL-2 |
21-30 |
220 |
40 |
25 |
138 |
| APBL-3 |
31-42 |
220 |
60 |
25 |
136 |
| APBL-4 |
43-52 |
220 |
60 |
32.8 |
131 |
| APBL-5 |
53-70 |
220 |
80 |
42.5 |
116 |
| APBL-6 |
71-90 |
220 |
100 |
52.7 |
105 |
| APBL-7 |
91-115 |
250 |
100 |
60 |
100 |
| APBL-8 |
116-145 |
250 |
100 |
70 |
100 |
|
