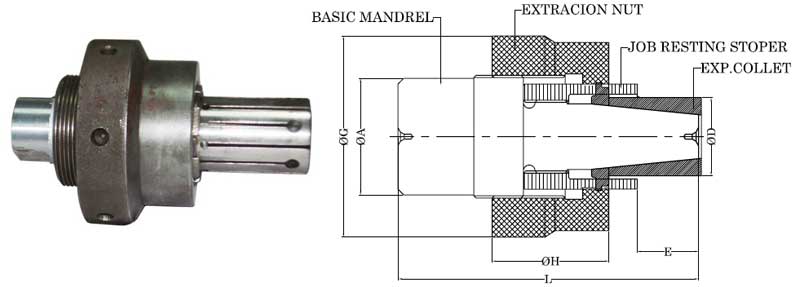

| Expanding Mandrel for Blind Hole Clamping Type: AZB |
|
| Mandrel No. |
Range |
L |
A |
E |
G |
H |
| AZB 01 |
12-14.5 |
97.5 |
14 |
26 |
31 |
29 |
| AZB 02 |
14.5-19 |
102.5 |
18 |
30 |
38 |
30 |
| AZB 03 |
19-24.5 |
113.5 |
20 |
36 |
47 |
30 |
| AZB 04 |
24.7-28.7 |
136 |
25 |
42.5 |
54 |
40 |
| AZB 05 |
29.7-33.7 |
144.5 |
30 |
46 |
57.5 |
40 |
| AZB 06 |
34.7-38.7 |
156 |
40 |
52.5 |
66 |
40 |
| AZB 07 |
39.7-43.7 |
166.5 |
40 |
58 |
74 |
40 |
| AZB 08 |
44.7-53.7 |
197 |
45 |
76.5 |
83 |
45 |
| AZB 09 |
54.7-63.7 |
208.5 |
50 |
85 |
93 |
48 |
| AZB 10 |
64.7-78.7 |
221.5 |
50 |
96 |
108 |
50 |
|
|
|
|
 |
|
