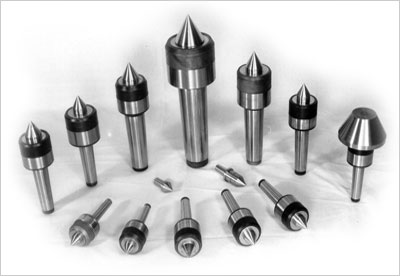

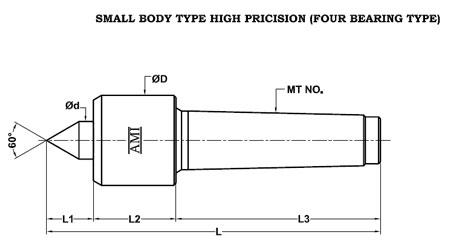

Revolving Center


Runout Within 0.010mm TIR Runout Within 0.010mm TIR

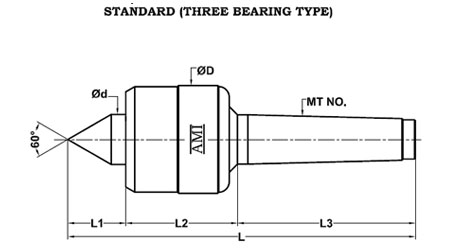

MT No. L1 L2 L3 L øD ød Load Capacity
MT-3 28 54 86 168 52 24 250 kg.
MT-4 36 60 109 205 62 28 300 kg.
MT-5 40 71 136 247 68 36 400 kg.
MT-6 58 90 190 338 102 56 1000 kg.

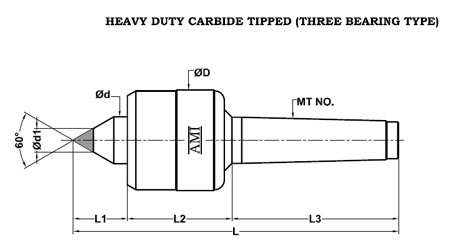

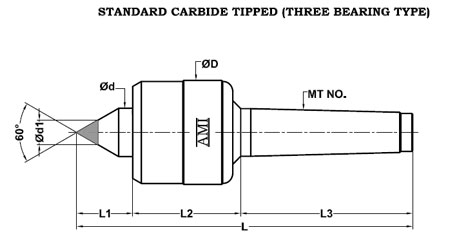

MT No. L1 L2 L3 L øD ød ød1 Load Capacity
MT-3 28 54 86 168 52 24 11 250 kg.
MT-4

36

60 109 205 62 28 11 300 kg.
MT-5 40 71 136 247 68 36 14 400 kg.
MT-6 58 90 190 102 102 56 18 1000 kg.
Runout Within 0.010mm TIR Runout Within 0.010mm TIR

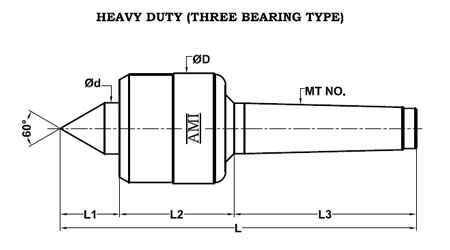

MT No. L1 L2 L3 L øD ød Load Capacity
MT-3 36 59 86 181 62 28 2300 kg.
MT-4 40 68 109 217 68 36 400 kg.
MT-5 40 78 136 254 82 36 600 kg.
MT-5 58 90 136 284 102 56 1000 kg.
MT-6 56 90 190 336 108 56 2000 kg.

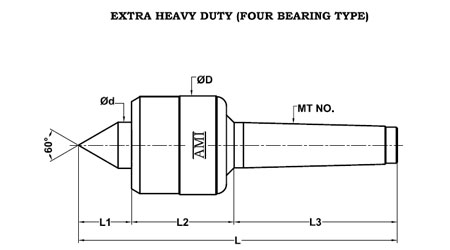

MT No. L1 L2 L3 L øD ød Load Capacity
MT-5 56 110 136 302 108 56 2000 kg.
MT-5 62 140 136 338 130 60 4000 kg.
MT-6 62 140 190 392 130 60 4000 kg.
MT-6 70 140 190 400 150 70 5000 kg.
Runout Within 0.010mm TIR Runout Within 0.010mm TIR
MT No. L1 L2 L3 L øD ød Load Capacity
MT-3 36 59 86 181 62 28 300 kg.
MT-4 40 68 109 217 68 36 400 kg.
MT-5 40 78 136 254 82 36 600 kg.
MT-6 56 90 190 336 108 56 2000 kg.
MT No. L1 L2 L3 L øD ød Load Capacity Speed max. (r.p.m.)
MT-3 28 47 86 164 50 24 500 Kg. 5000
MT-4 36.5 60.5 109 206 70 28 800 Kg. 3800
MT-5 39 73 136 248 74.5 38 2000 Kg. 3000
MT-6 67 88.5 196.5 352 108 60 3500 Kg. 2000
Runout Within 0.010mm TIR Runout Within 0.010mm TIR

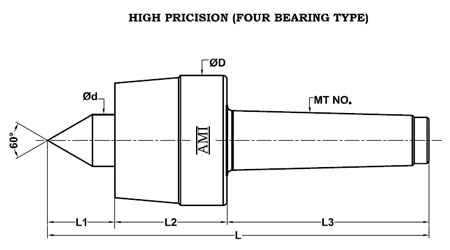

MT No. L1 L2 L3 L øD ød Load Capacity Speed max. (r.p.m.)
MT-3 25 44 86 155 44 20 400 Kg. 5000
MT-4 25 44 109 178 48 20 800 Kg. 3800
MT-5 34 63.5 136 234 58 30 1600 Kg. 3000
MT-6 49 86 196.5 331 80 42 3500 Kg. 2000

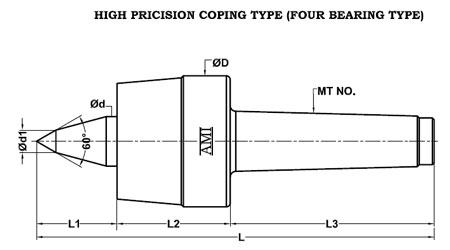

MT No. L1 L2 L3 L øD ød Load Capacity Speed max. (r.p.m.)
MT-3 37 47 86 164 50 18.3 500 Kg. 5000
MT-4 48 60.5 109 206 70 26.4 800 Kg. 3800
MT-5 52.5 73 136 248 74.5 34 2000 Kg. 3000
